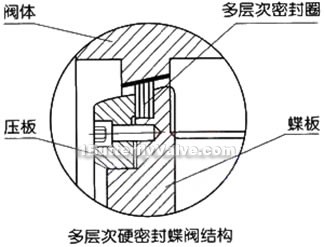

Structural drawing»

Three Eccentric Multi-level Metal Hard-sealed Wafer Butterfly Valve

product drawing

The introduction

Three eccentric multi-level metal hard-sealed wafer butterfly valve is the long service life and energy-saving butterfly valve. The structure is designed by principle of three-dimensional eccentric, the seat uses multi-level structure of compatibility of hard and soft sealing, and the processing is superb, the technology is advanced. This product is composed of body, disc, multi-level seat, stem, transmission device and other main parts. So it is widely applied to the pipelines of metallurgy, electric power, petroleum, chemical, air, gas, combustible gas, and water supply and drainage and other corrosive media.

Features

Because this product uses the principle of three-dimensional eccentric designs, the sealing face achieves an ideal space trajectories. There is no friction, non-interference between the sealing face, coupled with the right selction of sealing materials, so ensures the sealing, anti-corrosive, high temperature resistance and abrasion resistance, etc. reliablely. Its main features are as follows:
1、The open troque is small, flexible and convenient,and saving both labor and energy.
2、Three-dimensional eccentric structure makes the disc more tightly when closed more. Its sealing performance is reliable, and achieve non-leak.
3、High pressure resistance, corrision resistance, wear resistance and a long service life,etc.

Standard

design standard:GB/T12238-1989；JB/T8527-1997
flange connection dimensions:
GB/T9113.1-2000；GB/T9113.2-2000
GB/T9115.1-2000；GB/T9115.2-2000
face to face dimensions:GB/T12221-1989
test pressure:GB/T13927-1992；JB/T9092-1999

Main technical parameter

nominal diameter	DN（mm）	50～2000				50～500
nominal pressure	PN（MPa）	0.6	1.0	1.6	2.5	4.0
test pressure	intensity test	0.9	1.5	2.4	3.75	6.0
	sealing test	0.66	1.1	1.76	2.75	4.4
	gas sealing test	0.6	0.6	0.6	0.6	0.6
suitable temperature	carbon steel:-29℃～425℃ stainless steel-40℃～600℃
applicable medium	Air,water,steam,gas,oil,and acid,alkali,salt with a weak corrosive media,etc
drive mode	worm and worm gear drive,pneumatic drive,electric drive

The materials of main parts

part name	materials
body	cast iron, stainless steel, chrome-molybdenum steel, alloy steel
disc	cast iron, stainless steel, chrome-molybdenum steel, alloy steel
sealing ring	the multi-level composes of stainless steel and high temperature resistance asbestos board
stem	2Cr13, 1Cr13 stainless steel, chrome-molybdenum steel
bearing	Austenitic stainless steel, 304 azotizing
packing	flexible graphite

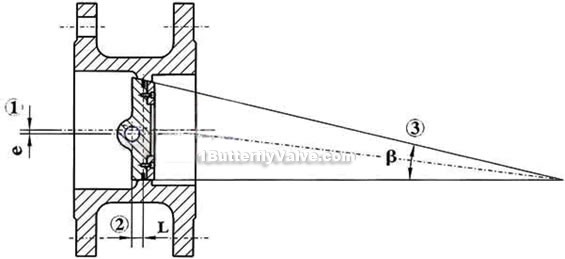

The three eccentric features and principles

1、 Deviate from the pipe center
2、 deviate from the sealing face center
3、 tilt cone
When the valve opens, the disc and the seat contacts soon when closed, using the disc accentricc separated from the seat rapidly, reducing the sealing part wear. The friction torque is small, and the opening is flexible. The accentric cone makes the disc through the hole when the valve is open or close, so that it can achieve contact seals. In addition, the radius of cone-shaped disc is larger than the sealing part contact radius, so the disc will appear more tightly when close more, achieve self-locking and prevention of the disc’s exceeded position.

Dimensions & constructral diagram

Dd	3	73H-	6	C.P.R.V series multi-level metal hard-sealed wafer butterfly valve
	6
	9		10

Nominal diameter		length standard	external dimension （reference value)										connection dimensions (standard value)				weight (kg)
			H	Dd373H			Dd673H			Dd973H			PN0.6MPa		PN1.0MPa
mm	inch	L		H1	A1	B1	H2	A2	B2	H3	A3	B3	D1	Z-d	D1	Z-d
50	2	43	112	350	180	200	625	245	72	530	250	255	110	4-14	125	4-18	12
65	21/2	46	115	370	180	200	625	245	72	530	250	255	130	4-14	145	4-18	13
80	3	64	120	380	180	200	645	245	72	565	250	255	150	4-18	160	8-18	15
100	4	64	138	420	180	200	675	355	92	600	250	255	170	4-18	180	8-18	17
125	5	70	164	460	180	200	715	355	92	640	250	255	200	8-18	210	8-18	27
150	6	76	175	555	270	280	800	355	92	705	300	315	225	8-18	240	8-22	29
200	8	89	215	780	400	425	850	250	170	775	300	315	280	8-18	295	8-22	45
250	10	114	243	840	400	425	925	250	170	945	300	315	335	12-18	350	12-22	69
300	12	114	285	995	450	560	1035	450	220	1070	300	315	395	12-22	400	12-22	86
350	14	127	320	1050	450	560	1070	450	220	1140	300	315	445	12-22	460	16-22	122
400	16	140	350	1220	535	580	1190	450	220	1210	300	315	495	16-22	515	16-26	141
450	18	152	350	1280	535	580	1250	650	280	1335	575	714	550	16-22	565	20-26	191
500	20	152	380	1365	535	580	1290	650	280	1415	575	714	600	20-22	620	20-26	260
600	24	154	435	1460	570	660	1455	850	380	1605	656	810	705	20-26	725	20-30	380
700	28	165	480	1520	750	550	1585	850	380	1844	656	810	810	24-26	840	24-30	450
800	32	190	530	1710	750	550	1700	1250	380	2040	656	810	920	24-30	950	24-33	650
900	36	203	595	1810	750	550	1965	1250	380	2255	785	863	1020	24-30	1050	28-33	830
1000	40	216	650	1900	900	750	2015	1250	380	2380	785	863	1120	28-30	1160	28-36	1050
1200	48	254	775	2280	1000	925	2250	1250	380	2640	785	863	1340	32-33	1380	32-39	1400
1400	56	279	870	2450	1000	925				2886			1560	36-36	1590	36-42	1900
1600	64	318	1000	2730	1000	925				3156			1760	40-36	1820	40-48	2900
1800	72	356	1110	3020	1100	980				3421			1970	44-39	2020	44-48	4000
2000	80	406	1250	3270	1100	980				3685			2180	48-42	2230	48-48	5300

Dd	3	73H-	16	C.P.R.V series multi-level metal hard-sealed wafer butterfly valve
	6
	9		25

Nominal diameter		length standard	external dimension （reference value)										connection dimensions (standard value)				weight (kg)
			H	Dd373H			Dd673H			Dd973H			PN1.6MPa		PN2.5MPa
mm	inch	L		H1	A1	B1	H2	A2	B2	H3	A3	B3	D1	Z-d	D1	Z-d
50	2	43	112	350	180	200	625	245	72	530	250	255	125	4-18	125	4-18	12
65	21/2	46	115	370	180	200	625	245	72	530	250	255	145	4-18	145	8-18	13
80	3	64	120	380	180	200	645	245	72	565	250	255	160	8-18	160	8-18	15
100	4	64	138	420	180	200	675	355	92	600	250	255	180	8-18	190	8-22	17
125	5	70	164	460	180	200	715	355	92	640	250	255	210	8-18	220	8-26	27
150	6	76	175	555	270	280	800	355	92	705	300	315	240	8-22	250	8-26	29
200	8	89	215	780	400	425	850	250	170	775	300	315	295	12-22	310	12-26	45
250	10	114	243	840	400	425	925	250	170	945	300	315	355	12-26	370	12-30	69
300	12	114	285	995	450	560	1035	450	220	1070	300	315	410	12-26	430	16-30	86
350	14	127	320	1050	450	560	1070	450	220	1140	300	315	470	16-26	490	16-33	122
400	16	140	350	1220	535	580	1190	450	220	1210	300	315	525	16-30	550	16-36	141
450	18	152	350	1280	535	580	1250	650	280	1335	575	714	585	20-30	600	20-36	191
500	20	152	380	1365	535	580	1290	650	280	1415	575	714	650	20-33	660	20-36	260
600	24	154	435	1460	570	660	1455	850	380	1605	656	810	770	20-36	770	20-39	380
700	28	165	480	1520	750	550	1585	850	380	1844	656	810	840	24-36	875	24-42	450
800	32	190	530	1710	750	550	1700	1250	380	2040	656	810	950	24-39	990	24-48	650
900	36	203	595	1810	750	550	1865	1250	380	2255	785	863	1050	28-39	1090	28-48	830
1000	40	216	650	1900	900	750	2015	1250	380	2380	785	863	1170	28-42	1210	28-56	1050
1200	48	254	775	2280	1000	925	2250	1250	380	2640	785	863	1390	32-48	1420	32-56	1400
1400	56	279	870	2450	1000	925				2886			1590	36-48	1640	36-62	1900
1600	64	318	1000	2730	1000	925				3156			1820	40-56	1860	40-62	2900
1800	72	356	1110	3020	1100	980				3421			2020	44-56	2070	44-70	4000
2000	80	406	1250	3270	1100	980				3685			2230	48-62	2300	48-70	5300

Dd	3	73H-	16	40C.P.R.V series multi-level metal hard-sealed wafer butterfly valve
	6
	9		25

Nominal diameter		Face to face Dimension (standard value)	External dimensions (reference value)										Connection dimension (standard value)
			H	Dd373H			Dd673H			Dd973H			PN4.0MPa
mm	inch	L		H1	A1	B1	H2	A2	B2	H3	A3	B3	D1	Z-d
50	2	43	112	350	180	200				530	250	255	125	4-18
65	21/2	46	115	370	270	280	625	250	170	530	250	255	145	8-18
80	3	64	120	380	270	280	625	250	170	565	250	255	160	8-18
100	4	64	138	420	270	280	645	250	170	600	250	255	190	8-22
125	5	70	164	460	380	420	675	250	170	640	250	255	220	8-26
150	6	76	175	555	380	420	715	450	220	705	300	315	250	8-26
200	8	89	208	780	400	425	800	450	220	775	300	315	320	12-30
250	10	114	243	840	400	425	850	450	220	945	300	315	385	12-33
300	12	114	285	995	450	560	925	450	280	1070	300	315	450	16-33
350	14	127	320	1050	450	560	1035	650	280	1140	300	315	510	16-36
400	16	140	350	1220	535	580	1070	650	280	1210	300	315	585	16-39
450	18	152	350	1280	535	580	1190	650	280	1335	575	714	610	20-39
500	20	152	380	1365	535	580				1415	575	714	670	20-42

Note: flange standard:GB/T9113.1-2000 GB/T911.5.1-2000
please attention:the dimensions of H1、H2、H3 can be lengthened(long pole butterfly valve ) by customers’ requirements, and if customer need special materials, you should suggest when ording.

Note: Dd means multi-level sealing structure.
