High Temperature Butterfly Valve

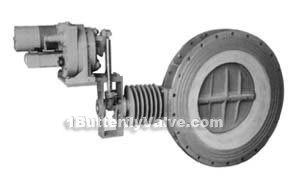

product drawing

Features

KVGD9012-2.5P electric high tempertaure butterfly valve is a new generation of high temperature valve in the introduction of foreign advanced technology, combined with the domestic manufacturing process development. It is widely used in the high temperature gas pipelines of metallurgy, building materials, chemical industry, power plants, glass and other industries, as the device of cutting off or regulating high-temperature gas medium flow, it can be paired with a variety of actuators to make up different performance devices. The body and the disc use high-quality materials, made of heat-resistant steel. It has characteristics of high temperature resistance, small size, flexible rotation, long service life, convenient operation and maintenance and so on.

Performance parameter

nominal pressure：0.25MPa
rated corner：0～90°
normal leakage rate：≤3% rear low-leakage：≤1%
working temperature：P9 t≤950℃；P8 t≤850℃；P7 t≤750℃；P6 t≤950℃；
P5 t≤550℃；P4 t≤450℃； P3 t≤350℃； P2 t≤250℃；
modulating：KVHD9012A-2.5；matched with ZKJ actuator or the actuator selected according to customer
voltage：200V.Ac or 380V.Ac
incoming signal：0-10(4-20)mA.DC
two switches type：KVHD9012B-2.5 matched with electric actuator
applicable medium： high temperature flue gas, or other dusty high temperature gas

Dimensions & constructral diagram

Main external dimensions

DN	D	D1	B	b	n-Φd	L1	KVGD9113a-2.5			KVGD9113a-2.5
							L	H	model	L	H	model
80	125	150	80	wafer	4-Φ18	240	1060	470	ZKJ-210	850	460	Z5-24
100	145	170				250	1080			870
125	175	200			8-Φ18	270	1120			910
150	200	225				290	1145			930
175	225	250				300	1170			955
200	255	280				315	1195			980
225	285	310	100		12-Φ18	325	1220			1005
250	310	335				340	1245			1030
275	335	360				355	1270			1055
300	362	395			12-Φ22	370	1295			1080
350	412	445	120			470	1555	550	ZKJ-310	1310		Z10-24
400	462	495			16-Φ22	495	1610			1365
450	518	550	150			530	1675			1570
500	568	600			20-Φ22	560	1870	690	ZKJ-410	1630		Z15-24
600	755	705	200	26	20-Φ26	610	1970			1730
700	860	810			24-Φ26	660	2070			1830
800	975	920			24-Φ30	710	2210	780	ZKJ-510	1930	570	Z20-24
900	1075	1020				770	2310			2030
1000	1175	1120			28-Φ30	810	2410			2130
1200	1375	1320	250		32-Φ30	910	2625			2330
1400	1575	1520			36-Φ30	1020	2835			2530		Z30-24
1500	1675	1620				1070	2935	1028	ZKJ-610	2630
1600	1790	1730	300		40-Φ30	1120	3035			2730
1800	1990	1930			44-Φ30	1320	3235			2930
2000	2190	2150			48-Φ30	1420	3435			3130

Ordering instructions

⑴ model: KVD ⑵ nominal diameter ⑶ nominal pressure ⑷ high temperature resistance type ( ordinary type can be not note) ⑸ actuator model ⑹ the action forms: electric-off type or electric-open type ⑺ PTFE filled materials(optional note) or graphite materials⑻ medium name ⑼ normal flow and required maximun flow ⑽ medium pressure, the inlet pressure and outlet pressure of maximun flow and minimun flow ⑾medium temperature and density ⑿ medium viscosity, whether it contains suspension
